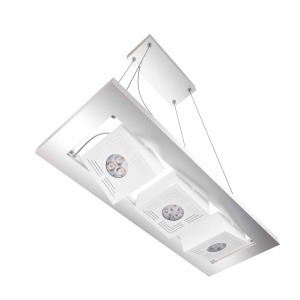

TRESOL Cube Trio – Pendant luminaires – Indoor LED luminaires

TRESOL Cube Trio - Pendant luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 495 lm
Dimensions & weight
Length 400.0 mm
Width 150.0 mm
Height 35.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable No
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws / 2x washers
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73236
Indoor LED luminaires
Pendant luminaires
TRESOL Cube Trio
TRESOL Cube Trio

Zoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle. 3. OSRAM GmbH, 330°) for easy direction of light output
High light output thanks to high-power LED
Quick and simple installation
Adjustable in height when combined with pendant kit
Product features
Pendant LED luminaire with aluminum frame in high value design
Color temperature: LED Floater Headline
, All rights reserved:000 K
Family data sheet
Product family:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: important data at a glance

Zoom image
TRESOL Cube Trio
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321985491 Folding carton box
1		 457 mm x 102 mm x 198 mm 1707.00 g 9.23 dm³
4008321985538 Shipping carton box
4		 481 mm x 545 mm x 293 mm 8240.62 g 76.81 dm³
