High power 50-200w led high bay light
High power 50-200w led high bay light Specification:
|
System consumption |
80W/100W/120W/170W/220W |
|
LED Intial Flux |
4500-5000LM/6000-6600/7500-8200 |
|
Power Factor |
85% |
|
Total Hamornical Disortion |
20% |
|
Power Efficiency |
>90% |
|
Illuminance(1M) |
1200LUX/1600LUX/2100LUX |
|
Illuminance Uniformity |
>0.4 |
|
Color Rendering Index |
BW: Ra>68; CW Ra>75 |
|
Beam Angle |
120/90/45 |
|
Working Voltage |
DC:30-36V |
|
Input Voltage |
AC 90-264V |
|
Frequency Range |
50-60Hz |
|
Junction Temperature |
≤80°C |
|
Working Temperature |
-40°C-+50°C |
|
IP Grade |
IP67 |
|
LED Life-Span |
30000-50000Hrs |
|
Material |
Alluminum Alloy |
High power 50-200w led high bay light Feature:
1) Use single powerful LED as the light source , using our proprietary LED encapsulation.
2) Utilizes the special design of multichip single module. Imported high brightness semiconductor chips.
3) High heat conductivity, low luminous decay, pure light color and no ghosting.
4) Integrative design for heat sink and housing; The LED is closely connected to the surface. The heat
From the LED is removed through the heat dissipation wing and also by air ventilation. This ensures
50,000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 10 years.
5) The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising, waterproofing, and dust prevention.
6) CE and RoHS certifications

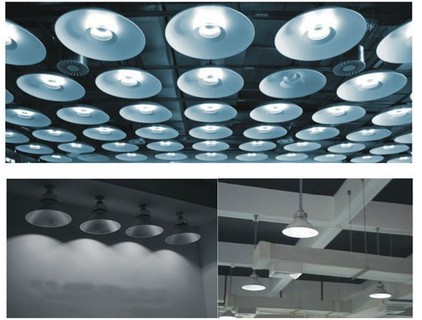

Application ( Workshop, warehouse, toll station, gas station, supermerket, gym, exhibition hall, public lighting places. )
